Fluoroplastics are high-end specialty functional polymers. Featuring exceptional chemical resistance, extreme temperature tolerance, electrical insulation, weatherability and anti-aging performance, they have become indispensable core materials for new energy, energy conservation & environmental protection, aerospace, high-end electronics, construction engineering and other industries.
Four mainstream fluoroplastics with mature industrialization and extensive market coverage are PVDF, PTFE, FEP and ETFE. Each category has distinct performance characteristics, leading to differentiated forming processes and end applications.
Properties & Core Applications of Four Mainstream Fluoroplastics
●Polyvinylidene Fluoride (PVDF)
As a semi-fluorinated material with well-balanced overall performance, PVDF delivers outstanding mechanical strength, impact resistance and chemical resistance, along with excellent processability for film production via casting, extrusion, coating and other methods. Being the key material for equipment trial runs, PVDF is widely used in protective backsheets for photovoltaic modules, filter membranes for industrial water treatment, and electrode binders for lithium-ion batteries. It serves as a vital fluoropolymer base material for new energy and environmental water treatment sectors.
●Polytetrafluoroethylene (PTFE)
Known as the "King of Plastics", PTFE boasts an ultra-wide operating temperature range, top-tier corrosion resistance, electrical insulation, self-lubricity and non-stick properties, and can withstand most strong acids, alkalis and corrosive media. Processed through sintering, stretching and lamination, it is the preferred material for high-end industrial sealing parts, non-stick coatings for cookware, insulating substrates for high-frequency electronics and porous functional films.
●Fluorinated Ethylene Propylene (FEP)
This melt-processable perfluoroplastic inherits PTFE’s superior corrosion resistance, insulation and temperature resistance, while overcoming PTFE’s limitation of non-melt extrusion. It features flexible forming processes, excellent light transmittance and reliable interlayer stability. FEP is mainly applied to insulating sheaths for high-end cables, liners for industrial anti-corrosion pipelines and transparent anti-corrosion films. It acts as an efficient alternative to conventional PTFE for large-scale film production.
●Ethylene Tetrafluoroethylene (ETFE)
ETFE is a lightweight, high-strength fluorinated film material with high light transmittance, excellent anti-aging performance, weather resistance and flame retardancy, as well as remarkable toughness and tensile resistance. It is widely used as architectural membrane materials for large stadiums, airport canopies and inflatable domes. Thanks to its light weight and heat resistance, it is also a core material for thermal control films of spacecraft in the aerospace industry.
Application Prospects of Segmented Fluoroplastic Film Markets
Driven by the rapid development of new energy, high-end manufacturing and environmental protection industries, the market value of functional fluoroplastic films keeps rising, with application scenarios expanding continuously.
●PVDF Functional Films: As the core substrate for ultrafiltration and microfiltration in water treatment, PVDF films feature high impurity removal efficiency, excellent corrosion resistance and long service life. Meanwhile, as key encapsulation backsheets for photovoltaic modules, they possess superior weather resistance and UV resistance, ensuring stable operation of PV systems for over 25 years.
●PTFE Porous Films: With a unique microporous structure, PTFE films achieve the special effect of air permeability while water resistance, and deliver excellent waterproof, dustproof and antibacterial properties. They are widely adopted in medical filter materials, high-end outdoor functional fabrics and proton exchange membranes for fuel cells.
●FEP Transparent Functional Films: Combining high light transmittance, superior insulation, corrosion resistance and temperature resistance, FEP films are ideal for encapsulation of flexible solar cells and insulation protection of high-frequency precision electronic components, and are essential materials for flexible electronics and optoelectronic new energy industries.
●ETFE High-strength Films: Characterized by light weight, high strength, high light transmittance and long-term weatherability, ETFE films are widely used in canopy projects of large public buildings. Their stable thermal control performance also makes them a preferred choice for high-end thermal protection in aerospace applications.
Core Technical Challenges in Fluoroplastic Film Forming
The special properties of fluoroplastics set far stricter requirements for processing equipment and technologies than ordinary plastics, which also form the core technical barrier for high-end fluoroplastic film manufacturing.
During high-temperature melting and plasticization, fluoroplastics release highly corrosive substances such as hydrogen fluoride. Screws and barrels made of ordinary steel are prone to corrosion and wear, which leads to declined equipment precision, uneven material discharge and shortened service life, and ultimately impairs film quality and production stability.
In addition, fluoroplastics generally require high forming temperatures. Uniform temperature distribution and thermal stability of the entire equipment are critical. Temperature deviation will cause inconsistent melt fluidity, and further result in film thickness deviation, surface defects and substandard mechanical properties. Accordingly, dedicated processing equipment featuring high temperature resistance, corrosion resistance and high precision is the fundamental guarantee for stable production and reliable quality of fluoroplastic films.
Process Advantages of Putong Dedicated Cast Film Equipment for Fluoroplastics

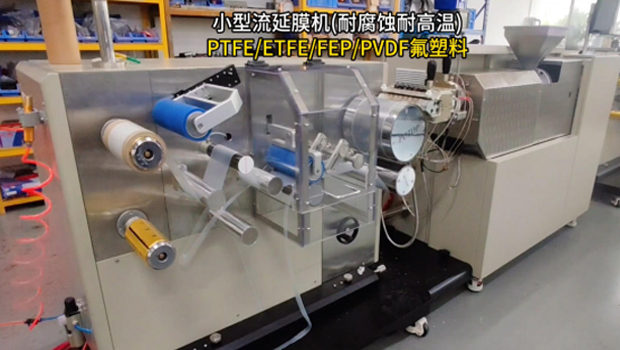

Targeting the technical difficulties of high-temperature processing and corrosion exposure during fluoroplastic production, Guangzhou Putong’s PVDF dedicated precision cast film pilot machine provides tailored solutions for all types of fluoroplastic film manufacturing. Optimized in core component materials and temperature control systems, the equipment effectively eliminates common defects occurring with traditional machines.
●Key forming components are manufactured from high corrosion-resistant alloys, which can withstand long-term erosion by highly corrosive media including hydrogen fluoride. It prevents precision loss caused by component wear and corrosion, greatly improves equipment stability and service life, and suits long-term laboratory tests and pilot production of various fluoroplastics.
●Equipped with an efficient and uniform temperature control system, the machine delivers even heat conduction and stable temperature regulation. It perfectly meets the high-temperature forming requirements of PVDF, FEP, ETFE and other fluoroplastics, and maintains steady temperature inside barrels and dies. The fluoroplastic melt is fully plasticized with consistent fluidity and uniform output, fundamentally avoiding film defects such as crystal points, wrinkles and uneven thickness.

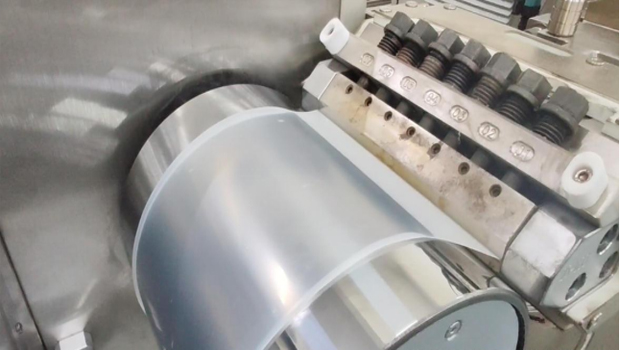

Excellent forming results have been achieved in the PVDF trial production. The equipment stably produces smooth PVDF films with a thickness of 0.2 mm. The finished films feature a flawless, transparent surface, uniform thickness and stable performance. This fully proves that our dedicated high-temperature and corrosion-resistant precision equipment is well qualified for R&D and industrialization of high-end fluoroplastic films.
With the booming development of new energy, environmental protection and aerospace industries, market demand for high-performance fluoroplastic films is growing rapidly, accompanied by increasingly stringent requirements on film uniformity, stability, weather resistance and functionality.
Our high temperature and corrosion resistant precision extrusion cast film machines fully support formula development, process optimization, sample preparation and small-batch trial production of all kinds of fluoroplastic films, and effectively address industrial pain points including difficult forming, severe equipment loss and unstable product quality.
In the future, supported by advanced precision forming technologies and professional dedicated equipment, functional fluoroplastic films will gain wider applications in high-end new energy, precision electronics, aerospace, environmental water treatment and other fields.
