Functional film multilayer co-extrusion casting test line is equipped with multiple precision extrusion, melt conveying, and forming units, integrating the entire process of multilayer co-extrusion, casting, traction, trimming, and winding. The equipment can simulate the working conditions of a mass production line, effectively improving experimental efficiency and shortening the R&D cycle of new materials. It is the preferred experimental equipment for high-precision multilayer film formulation development and process verification

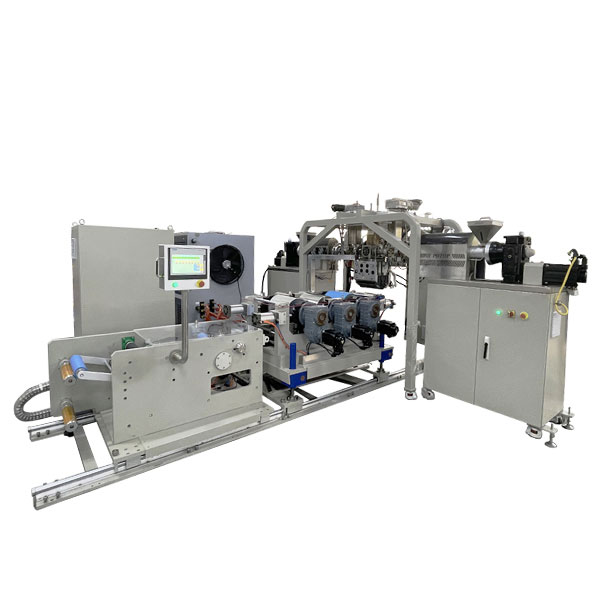

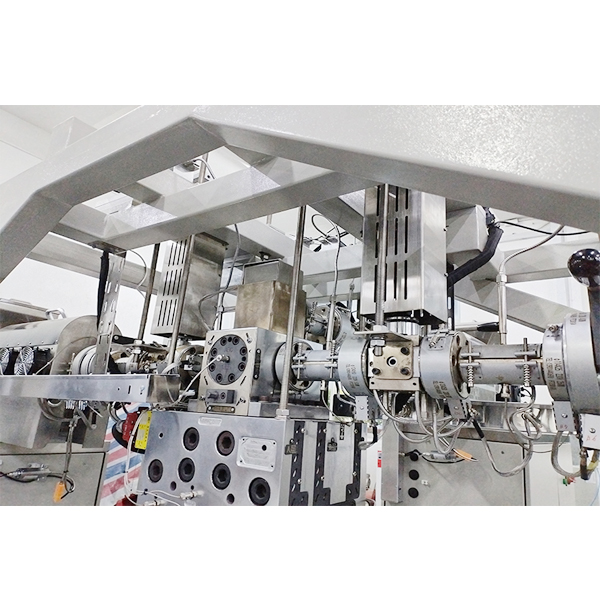

Functional film multi-layer co-extrusion casting pilot line consists of 3 units precision single-screw extruders, 3 sets of screen changing systems,3 sets of melt pump systems,1 set of three-layer co-extrusion die head,1 set of precision casting machine, etc. It can realize the functions of polymer multi-layer extrusion, casting,traction ,trimming, winding, and waste collection.It can be equivalent to a production line, improve experimental efficiency, shorten product development cycle, and is an ideal experimental equipment for high-precision and high-performance film molding.
●Adopting servo motor drive, stepless and precise speed regulation, stable plasticization and good consistency.

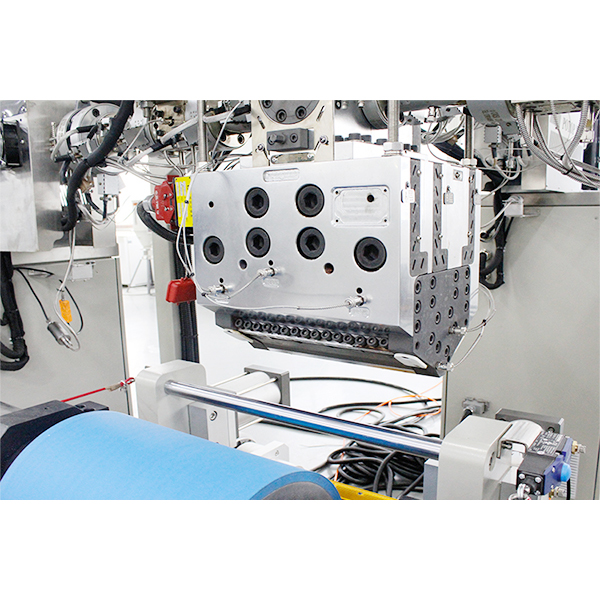

●Digital design co-extrusion die head, smooth flow channel without dead corners and material stagnation, uniform material discharge.

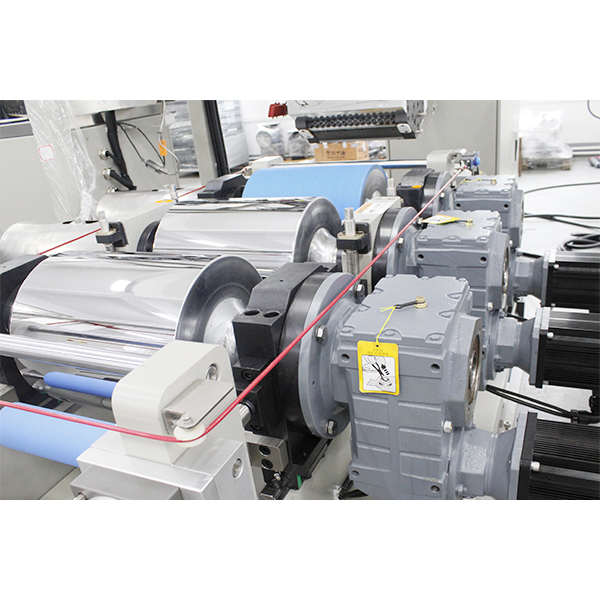

●Each power is independently driven by a servo motor, with precise speed control and good synchronization performance.

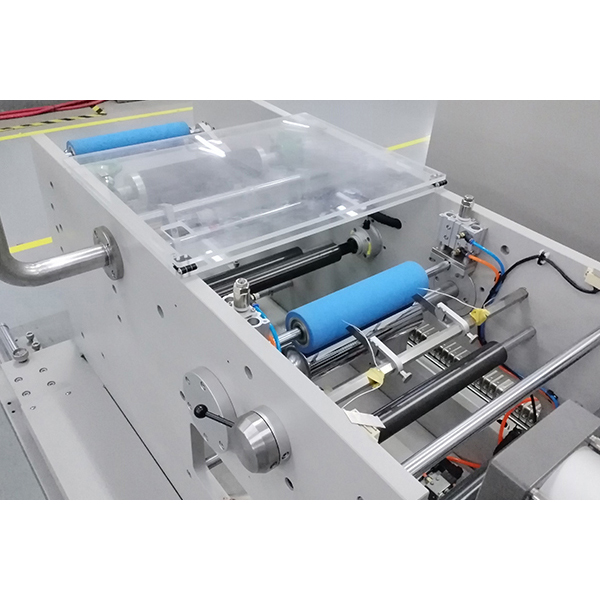

●The height of casting rollers can be adjusted up and down, which can meet the process requirements of casting materials with different solute strengths.
●Hard chrome-plated mirror roller, high surface finish, no rust.
●Computer-based measurement and control system and friendly operation interface, easy to operate and more powerful.
●Real-time measurement and graphic display of important data, convenient observation.
●Humanized structural design, more convenient operation.
●Optional online defect detection system.
Industries: Packaging, New Energy (Lithium battery, Photovoltaic), Medical & Health, Electronics, Polymer Materials, Scientific Research & Education, Aerospace, etc. Suitable for R&D and testing needs of various multi-layer composite films.
Application :
● Co-extrusion casting forming experiments for polymer materials .
● Research and parameter optimization of co-extrusion casting production processes .
● Performance testing of new materials for co-extrusion casting .
● Dispersion performance testing and evaluation of color masterbatches.
|
Model |
FDCL-25/35 |
||
|
Applicable materials |
PE、PP,etc. |
||
|
Screw diameter |
25mm |
||
|
L/D |
28 |
||
|
Die distribution form |
3 (ABC structure) |
||
|
Die head width |
300mm |
||
|
Product width |
0-250mm（depends on the material） |
||
|
Product thickness |
0.05-0.15mm |
||
|
Roll width |
350mm |
||
|
Linear speed |
0-10m/min |
||
|
Pressure measuring rang |
0-50MPa |
||
|
Pressure measuring accuracy |
0.5%FS |
||
|
Operating temperature |
Rt-350℃ |
||
|
Temperature accuracy |
±1℃ |
||
|
Working voltage |
3φ380VAC±10%，1φ220VAC±10%，50Hz |
||
|
Rated power |
About 84kW(including temperature cycle controller) |
||
|
L×W×H |
6120mm×4580mm×2240mm |
||
|
Weight |
About 7900kg |
||
|
Screw speed |
0-120rpm |
Small precision film longitudinal stretching machine can conduct continuous longitudinal stretching tests on film samples of a certain size at the required stretching ratio at a suitable temperature
Small precision extrusion calender is composed of a small precision single screw extruder, a screen changer system, a calendering die,
Small precision extrusion casting machine is composed of a small precision single screw extruder, a screen changer system, a casting die, a casting system
Desktop small precision extrusion casting film blowing integrated machine is composed of a small precision single screw extruder, a screen changer system
Small precision extrusion blown film machine adopts precision extrusion and high-performance film blowing molding technology. It is suitable for film blowing molding of common polymer materials such as PE
Small precision twin-screw extrusion pelletizing line consists of split small precision twin-screw extruder screen changer, pelletizing die,cooling water tank,air-drying device and small precision pelletizer
Small precision three-screw extrusion pelletizing line consists of a split-type small precision triple-screw extruder, screen changer, granulation die, cooling water tank
Functional film multi-layer Co-extrusion Casting Pilot Line consists of 3 precision single-screw extruders, 3 screen changers, 3 melt pump systems, 1 three-layer co-extrusion die
Small precision 3D printing consumable extrusion experimental machine consists of a precision single-screw extruder, wire die, cooling water tank, diameter gauge system, haul-off system, traversing winder
