Overview of PFA Materials
Benefiting from its thermoplastic processability for extrusion, injection molding, cast film extrusion, biaxial stretching and other forming methods, PFA acts as a core special material in high-purity semiconductor manufacturing, fine chemical engineering, biomedicine, aerospace, high-end new energy electronics and other fields. It is also a key category for the research, development and industrialization of high-end fluoroplastics at present.

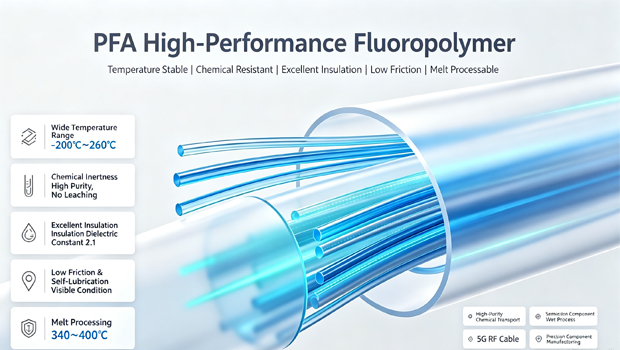

Core Properties of PFA
● Wide temperature resistance with stable performance at high and low temperatures:
PFA can be used continuously within the temperature range of -200℃ ~ 260℃. It features excellent low-temperature toughness and resistance to brittle fracture. Its creep resistance under high-temperature conditions far outperforms conventional PTFE. It can be long-term applied in demanding scenarios such as high-temperature chemical liquid transportation, high-temperature wire coating and high-temperature resistant films, presenting outstanding environmental adaptability.
● Strong chemical inertness with high purity and zero precipitation contamination:
The material boasts excellent chemical stability and resists corrosion from most strong acids, strong alkalis, strong oxidants and organic solvents; only a small number of molten alkali metals can erode it. High-purity PFA delivers low contamination without ion leaching, meeting strict cleanliness requirements for semiconductor wet processes and sterile pharmaceutical production.
● Superior insulation for high-end electronics:
The dielectric constant of PFA remains stable at approximately 2.1. Its insulation performance barely fluctuates under wide temperature ranges and high-frequency operating conditions. With low dielectric loss, high flame retardancy and high reliability, it is widely applied to 5G RF cables, high-voltage insulation components, aerospace temperature-resistant wiring harnesses and other high-end electrical & electronic products.
● Low surface adhesion with self-lubrication, visible operating conditions and easy maintenance:
With ultra-low surface energy, PFA features good self-lubricity, anti-sticking and anti-fouling properties for easy cleaning. PFA films are translucent, enabling visual observation of internal conditions inside pipelines and anti-corrosion tanks, which greatly reduces equipment inspection and maintenance costs.
● Continuous melt processing (core advantage):
PFA has a melting point of 305～310℃, with an effective processing temperature window of 340～400℃. Unlike PTFE limited to single sintering molding, PFA supports continuous production via multiple thermoplastic processes. It is suitable for manufacturing high-end films, precision pipes, cable sheaths and special-shaped components, greatly improving molding efficiency and product precision.
Core Processing Challenges & Industry Pain Points of PFA
Despite wider compatibility with molding processes, PFA is a difficult-to-process special fluoroplastic with high barriers for research and small-scale trials:
● Narrow processing window: Thermal degradation easily occurs above 400℃, releasing corrosive fluorine-containing gas and resulting in material failure and equipment corrosion.
● High melt viscosity: It is hard to achieve sufficient plasticization. Conventional equipment often suffers inadequate plasticization, large film thickness deviation, surface defects and other issues.
● Strict equipment requirements: Molten PFA is highly corrosive. Ordinary nitrided screws and standard metal barrels are prone to pitting corrosion and metal precipitation, contaminating high-purity materials and failing to satisfy semiconductor and medical-grade R&D standards.

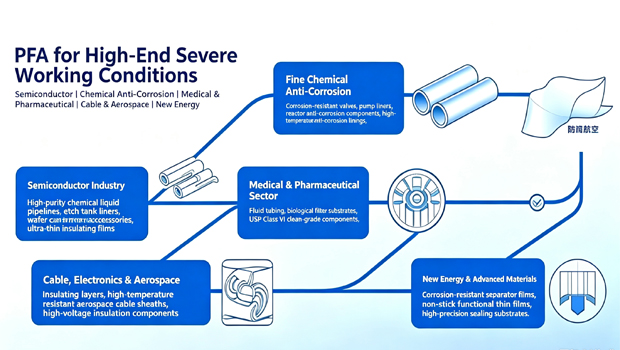

Main Application Fields of PFA
Leveraging the comprehensive performance of outstanding temperature resistance, anti-corrosion capability, high purity and insulation, PFA is widely used in high-precision industries and severe working conditions:
● Semiconductor industry: High-purity chemical fluid pipelines, lining for etching baths, wafer carrier components, ultra-thin insulating functional films
● Anti-corrosion for fine chemicals: Corrosion-resistant valves, pump liners, anti-corrosion parts for reaction kettles, high-temperature anti-corrosion film liners
● Pharmaceutical & medical field: Tubing for sterile fluid transportation, biological filter substrates, clean components compliant with USP Class VI standards
● Electronic wiring & aerospace: Insulation layers for 5G high-frequency RF cables, temperature-resistant aerospace wire sheaths, high-voltage insulation components
● New energy & advanced materials: High-end anti-corrosion separator films, industrial non-stick functional films, high-precision sealing substrates
Conventional general-purpose extrusion cast film equipment cannot meet the formula iteration and small trial demands of university research institutions and new material enterprises, as they fail to satisfy PFA’s strict requirements: narrow processing window, high melt viscosity at high temperature, strong corrosivity and zero precipitation for high-purity production. Such ordinary equipment usually suffers insufficient heat resistance, easy corrosion, material contamination, poor finished product quality and difficult process debugging.

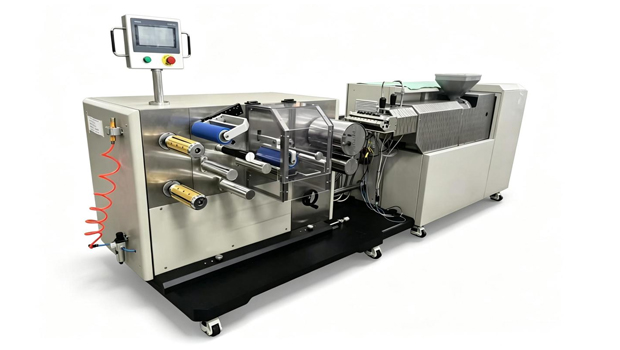

To address this demand, POTOP launches the FDSI-25/22 High-temperature Corrosion-resistant Small Precision Extrusion Casting Machine. It is custom-developed for sample preparation, process optimization and formula iteration of melt-processable high-end fluoroplastics including PFA and PVDF. The maximum withstand temperature reaches 450℃, fully covering the complete processing temperature range of PFA.

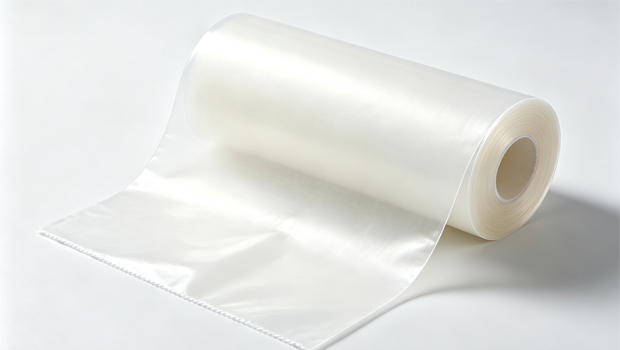

All core wetted parts of the machine are made of special anti-corrosion alloy, thoroughly solving common problems occurring during PFA processing on ordinary equipment: screw pitting corrosion, metal precipitation, material contamination and thermal degradation. It enables stable small-batch precision preparation of high-purity PFA and modified PFA films with uniform thickness, sufficient plasticization and impurity-free quality, fully complying with standards for scientific research experiments and new process development.
Driven by the rapid development of advanced semiconductor manufacturing, upgraded fine chemical industry and booming new energy sector, market demand for high-purity PFA fluoroplastics keeps growing steadily. In-depth performance research, modification iteration and industrial implementation of high-end fluoroplastics heavily rely on professional, stable small-scale precision experimental molding platforms.
With years of experience in developing experimental equipment for specialty polymers, POTOP provides a complete set of molding experimental equipment and process solutions for PFA materials for universities, research institutes and new material companies. We accelerate the R&D progress and industrial transformation of high-end perfluoropolymer new materials.
