Product Introduction

POTOP Multifunctional Modular Workstation for Polymer Materials is an independently developed modular integrated experimental platform by POTOP Co., Ltd. With the central main control unit as the core, it can be freely combined with torque mixing module, capillary rheology module, casting forming module, and blown film forming module, realizing an efficient R&D mode of "one main unit, multi-module expansion, and full-process experiments".

The equipment integrates core functions such as material blending, plasticization, rheological characterization, film forming, and process parameter optimization. It is suitable for basic research and product development of polymer materials such as plastics, rubbers, elastomers, composite materials, and biodegradable materials, and is widely used in universities, research institutes, enterprise R&D centers, and quality inspection institutions.

Product Features

●Highly Modular: The main control unit and each functional module are independently designed, enabling quick connection, free combination, and flexible expansion. Modules can be added or reduced as needed.

●Precise Measurement and Control: Full closed-loop servo control, high-precision sensors, and intelligent temperature control system ensure accurate data and stable processes.

●Intelligent Operation: Specialized measurement and control software with a visual interface, real-time data collection, automatic curve generation, and one-click report export.

●Safe and Reliable: Multiple overload protection, over-temperature alarm, and emergency stop mechanisms, complying with laboratory safety standards.

System Composition and Module Functions
●Main Measurement and Control Module

Function Positioning: The control center, data collection and processing center of the entire workstation, which uniformly drives and manages all modules. It is equipped with a high-performance servo motor and drive system, with a speed range of 0–360rpm, stable torque output, and high speed regulation accuracy.

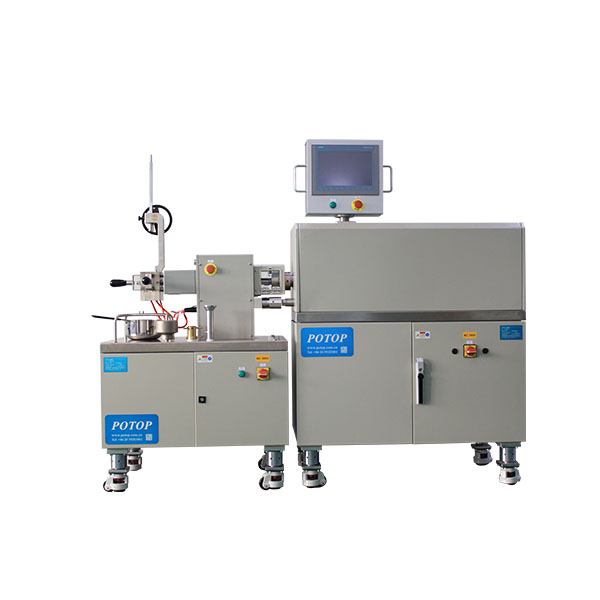

●Torque Mixing Module

Measures material plasticization curves, torque-time curves, equilibrium torque, plasticization time, and thermal stability.

Mixing and Blending: 55/200/300mL mixing chamber simulates the actual processing shear environment to prepare blended samples.

Application: Formula R&D, raw material inspection, PVC plasticization testing, thermal/shear stability evaluation, and color masterbatch dispersibility detection.

●Capillary Rheology Module

Tests apparent/true viscosity, shear rate/shear stress relationship, extrusion swelling behavior, and flow stability.

Simulates the extrusion processing flow field to evaluate material extrudability and process window.

Die Configuration: Multiple length-diameter ratios (10/20/30/40), diameters (1mm/2mm), and optional slit dies.

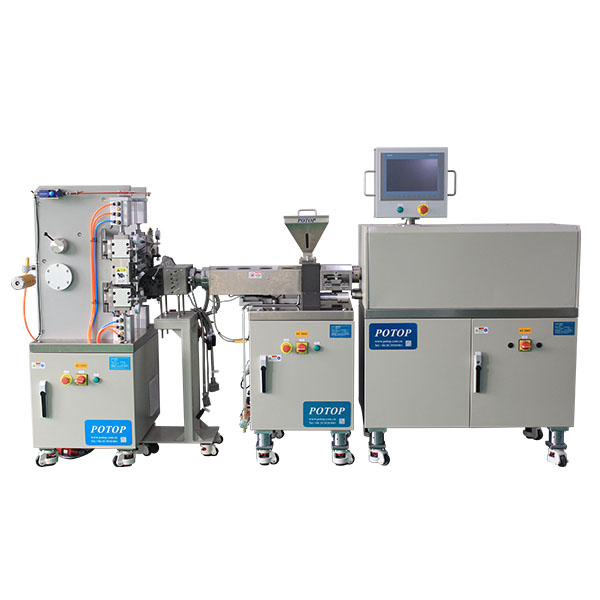

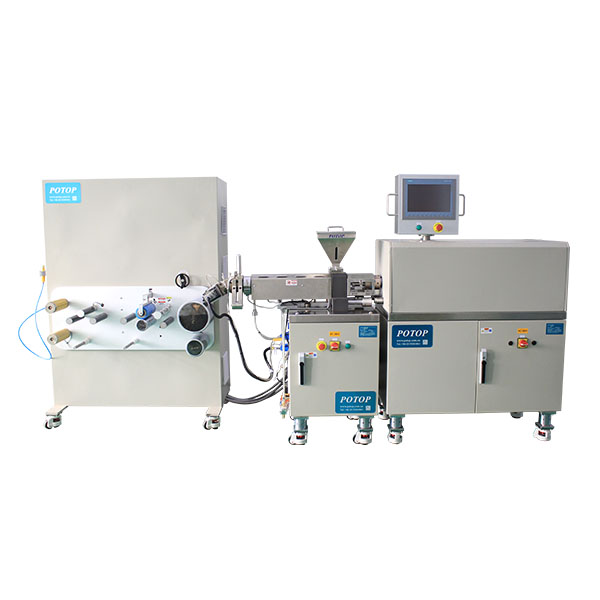

●Casting Forming Module

Integrated process of extrusion → casting → cooling → traction → edge trimming → winding, producing precision cast films of 0.01–1mm.

Application: R&D of optical films, photovoltaic films, lithium battery separators, packaging films, biodegradable films, and functional coating films.

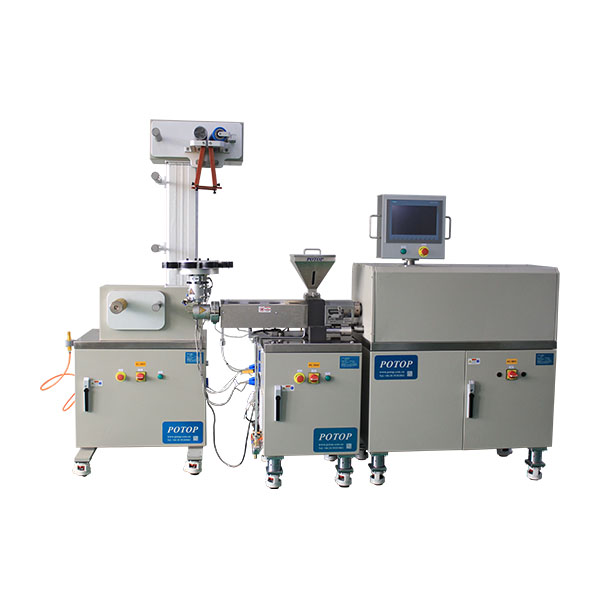

●Blown Film Module

Process of extrusion → blowing → cooling → traction → winding, producing blown films such as PE/PP/PA/EVA/PLA.

Tests blow-up ratio, draw ratio, film uniformity, crystal points/fish eyes, and mechanical properties.

Application: Packaging films, agricultural films, functional films, color masterbatch dispersion, and new material blown film processes.

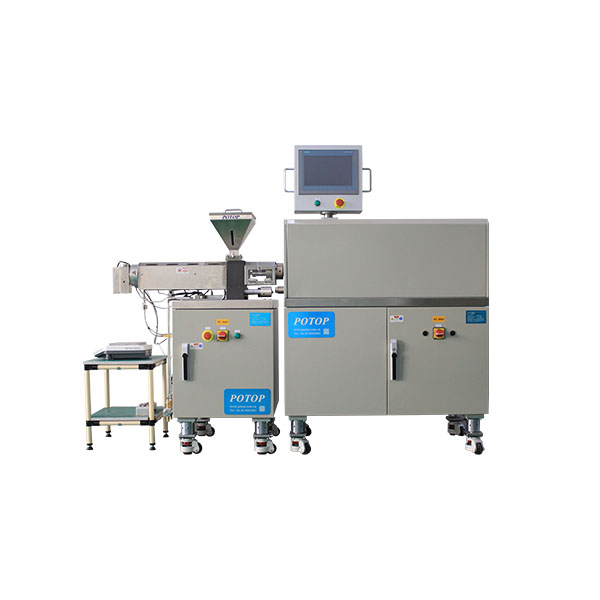

●Twin/Single Screw Extruder Module

Efficiently completes experiments such as material blending, filling, reinforcement, modification, and biodegradable materials, with excellent shear dispersion effect and high mixing uniformity.

Precision metering extrusion, which can be connected to casting and blown film modules for forming, or used for formula R&D and process optimization of special materials.

Application Range

●Materials R&D and Formulation Design

New polymer synthesis and characterization, blending modification, filler reinforcement, toughening modification, functionalization formulation

Biodegradable materials (PLA/PBAT), recyclable materials, development of specialty engineering plastics

●Rheological and Processing Performance Research

Viscosity curves, shear stability, thermal stability, extrusion behavior, blown/cast molding performance testing

Processing window, optimization of process parameters (temperature/speed/pressure/traction)

●Functional Thin Film R&D

Lithium-ion battery separators, photovoltaic films, optical films, high-barrier films, antibacterial films, heat-shrinkable films, water treatment films

Multilayer co-extrusion casting/blown film, composite processes, structural design

Optional Configurations and Accessories

Optional Configurations

●Central main control unit (including servo system, measurement and control software, touch screen)

●Torque mixing module (55mL, Roller) Rotor

●Capillary Rheology Module (Standard Die)

●Cast Casting Module (Cast Die, Cooling Roller, Traction Winding)

●Blown Film Module (Blown Film Die, Air Ring, Traction Winding)

Optional Accessories

●Special Rotors (Banbury/Cam/Sigma)

●Various Capillary Dies, Narrow Slit Dies

●Laser Diameter Gauge (Extrusion Swelling)

●Pressure Filtration Value Testing Component

●Multi-Layer Co-Extrusion Die (Cast/Blown Film)

●Online Thickness Gauge, Tension Control System

●Customized Modules, Non-Standard Specifications
