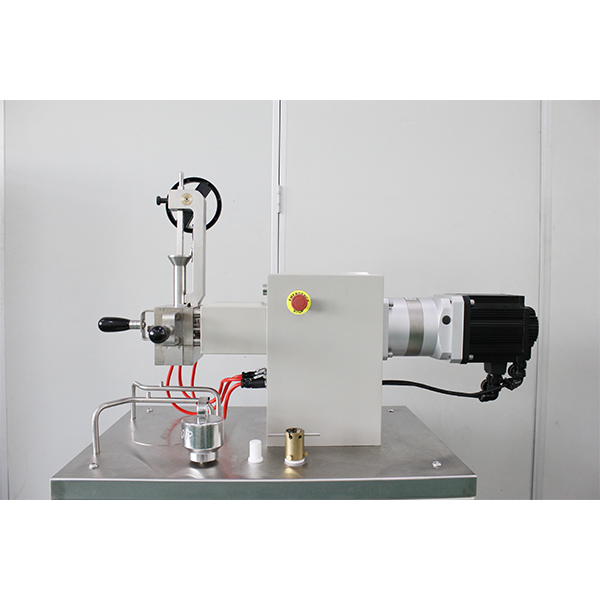

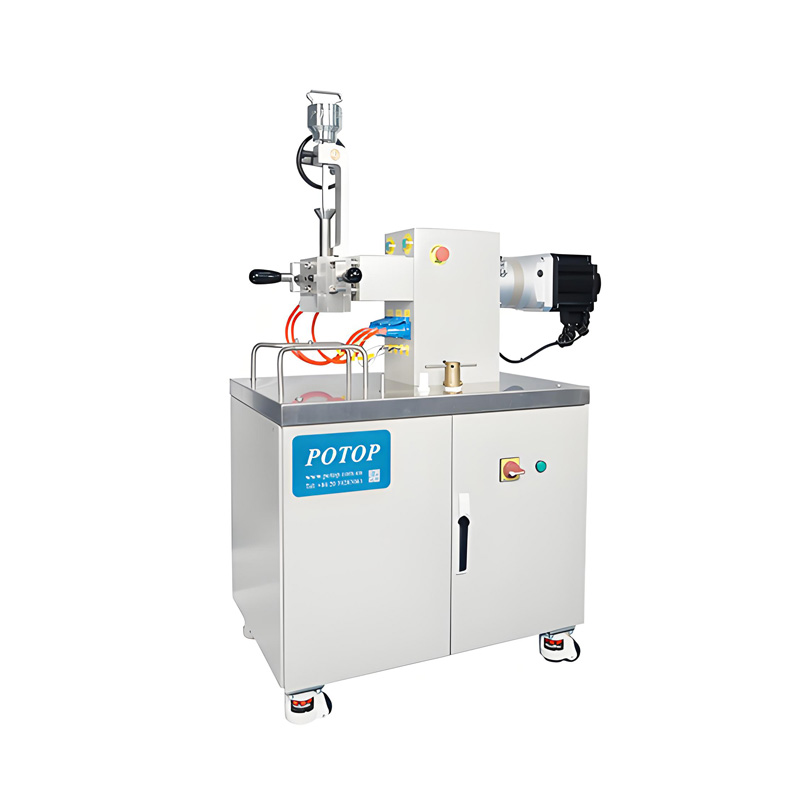

Torque rheometer is the ideal equipment to study the flow, plasticization, heat and shear stability of materials.The rheometer provides a dynamic measurement method closer to the actual processing,such as the mixing of multi-component materials, cross-linking and curing of thermosetting resins, vulcanization of elastomers, dynamic stability of materials and the influence of screw speed on system processing performance.
Torque rheometer is the ideal equipment to study the flow, plasticization, heat and shear stability of materials.The rheometer provides a dynamic measurement method closer to the actual processing,such as the mixing of multi-component materials, cross-linking and curing of thermosetting resins, vulcanization of elastomers, dynamic stability of materials and the influence of screw speed on system processing performance.
Product Features
●Adopt non-contact dynamic torque sensor, with high data test accuracy and good repeatability.

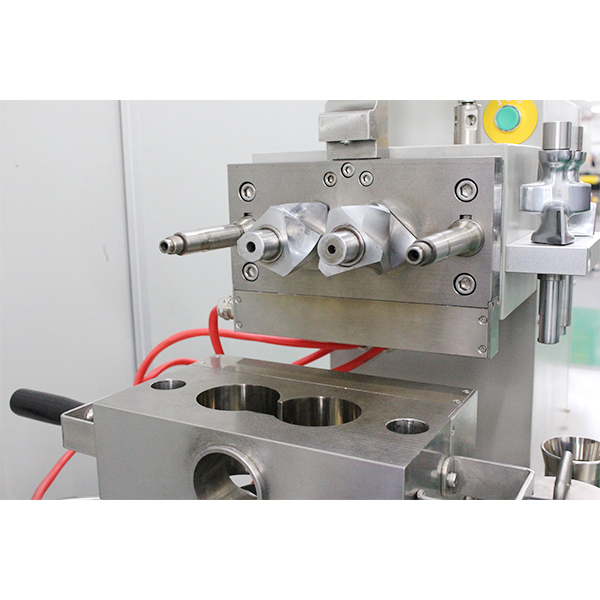

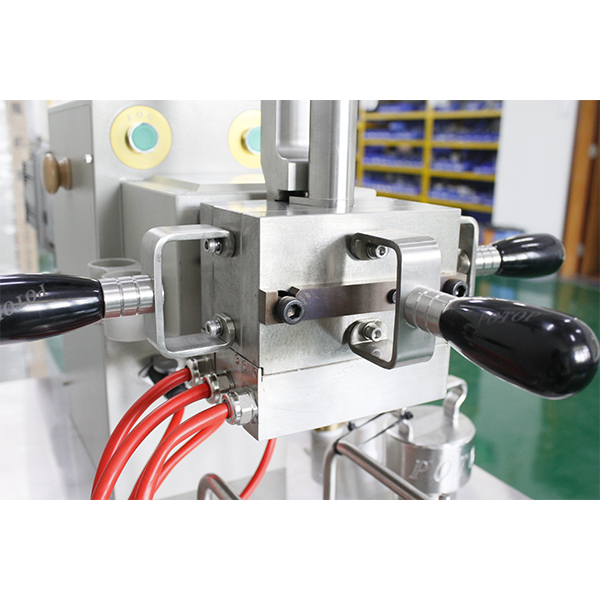

●Building block structure design, dense refining cavity, rotor can be flexible disassembly, easy to clean up the material.
●The mixing chamber and rotor are made of high-performance corrosion-resistant and wear-resistant materials.

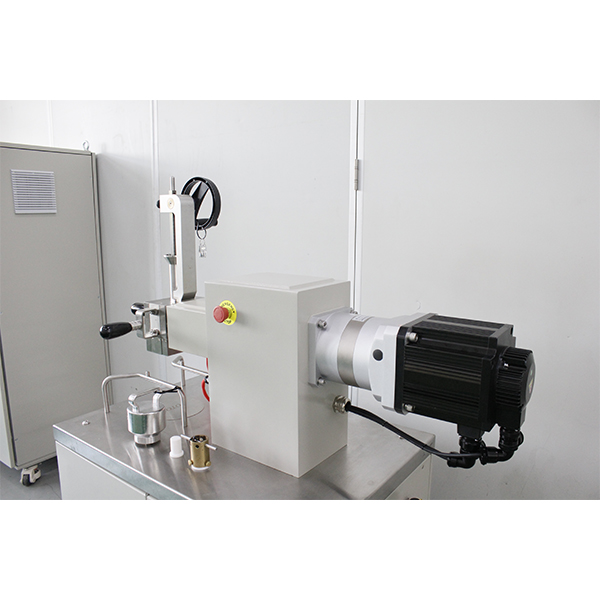

●High-performance servo motor, wide range of speed regulation, more stable speed.
●Based on the self-developed special software, it is powerful and has good human-computer interaction.
●High torque and temperature measurement accuracy, sensitive to subtle differences in formulation.
●Humanized structure design, more convenient operation.
●Polymer material formulation design.
●Raw material performance, quality inspection.
●PVC melting characteristics test.
●PVC dry blend plasticizer absorption performance test.
●Thermoplastic material thermal and shear stability test.
●Metal, ceramic and other inorganic powder sintering molding material formula design.
| Model | RTOI-06/02 | RTOI-20/10 | RTOI-30/10 | ||||
| Applicable material | General plastics and rubber, etc | ||||||
| Chamber volume | 55ml | 200ML | 300ML | ||||
| Speed | 0-187.5rpm | ||||||
| Rotor speed ratio | 3:2 | ||||||
| Torque measuring range | 0-200Nm | ||||||
| Operating temperature | Room temperature-350℃ | ||||||
| Temperature accuracy | ±1℃ | ||||||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||||||
| Rated power | About 4.5kW | About 13kW | |||||
| L×W×H | 1173mm×610mm×1578mm | 1400mm×610mm×1600mm | |||||
| Weight | About 250kg | About 520kg | |||||
