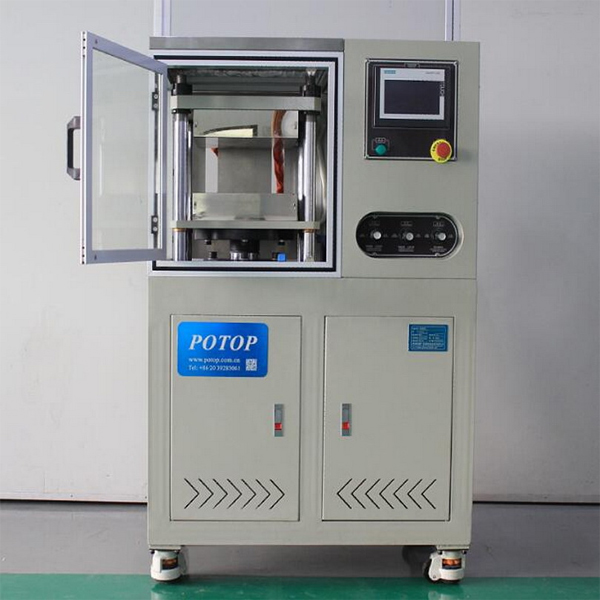

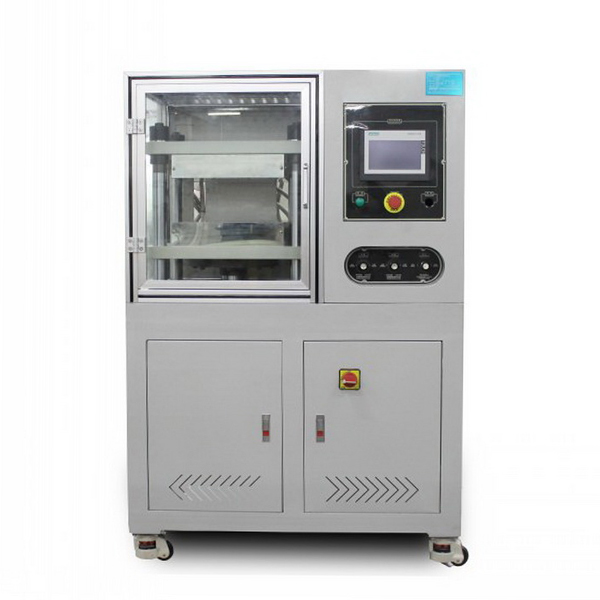

25T lab plate vulcanizing press with PLC touchscreen & PID precise heating, supports two-stage pressurization and adjustable vent cycles, ideal for rubber/plastic vulcanization, formulation R&D and molding process test.
Product Introduction

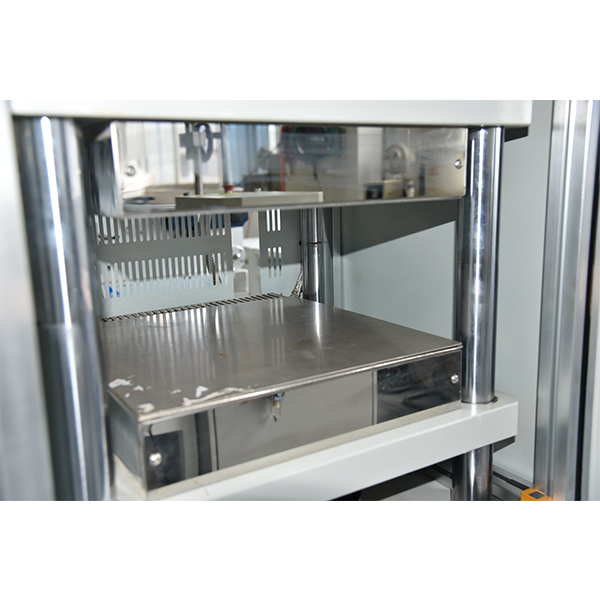

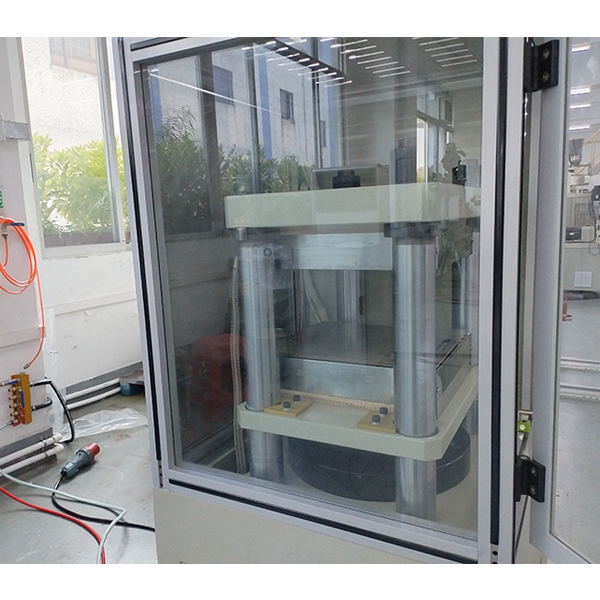

Plate vulcanizing press is designed for vulcanization and hot compression molding of rubber, plastic and composite materials. Pressure is delivered by hydraulic system driven by brand-name motor, and heating is realized via electric heating platens with PID closed-loop temperature control. Loaded moulds are sandwiched between heated platens to complete high-temperature & high-pressure curing and forming.

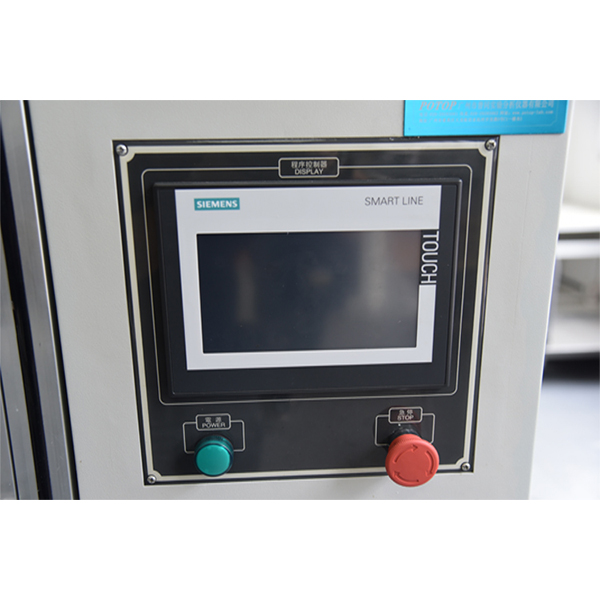

Controlled by PLC touchscreen HMI, all technical parameters including curing duration, staged pressurization and venting times are freely configurable. Real-time running status is displayed on screen for full-process monitoring. With reliable mechanical structure, precise temperature & pressure control and automatic workflow, the machine delivers repeatable test samples for formula screening and process optimization, well received by laboratories and new material manufacturers.
Product Features
●Brand motor driven hydraulic system ensures high precision pressure control
●Electric heating plus PID control for fast heating and accurate temperature regulation
●Freely adjustable curing time for flexible test operation
●Computer-based measurement & control system with user-friendly interface for easy operation
Application Range
●Formula development and vulcanization test of various rubber & plastic materials
●Small specimen preparation of vulcanized rubber and thermosetting products
●Hot compression molding of rubber, plastic and composite materials
●Research on rubber vulcanization mechanism
●Optimization of rubber formulation and vulcanization process parameters
| Model | LSVI-25 | ||
| Applicable material | Rubber, plastic, etc. | ||
| Clamping force | 25 tons (1-20MPa adjustable) | ||
| Platen Size | 300mm×300mm×60mm | ||
| Platen distance | 150mm | ||
| Number of working layers | Single-layer two-board | ||
| Gradient pressurization | 2nd paragraph | ||
| Exhaust times | 0-999times can be set | ||
| Cylinder speed | 4-12mm/s | ||
| Pressure measurement range | 0-30MPa | ||
| Pressure measurement accuracy | 0.5%FS | ||
| Temperature control range | Rt-300℃ | ||
| Temperature control accuracy | ±2℃ | ||
| Rated power | About 8kw | ||
| L×W×H | 950mm×500mm×1470mm | ||
| Weight | About 600kg |
