✅Wide Material Compatibility: Works with PE, PP, PLA, PCL and various biodegradable & modified polymers for formulation research and material testing.

✅High Precision & Repeatability: High accuracy sensors and servo drive. Temp control ±1℃, pressure accuracy 0.5% F.S. Stable parameters, traceable data and consistent samples.

✅Intelligent Control & Safe Operation: SIEMENS PLC + touch screen. Real-time status display, simple operation and complete safety protection.

✅Compact Modular Layout: Small footprint, fits laboratory space.

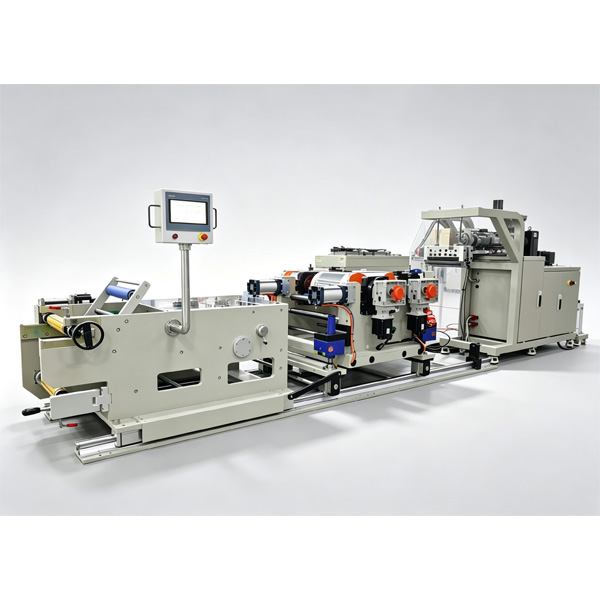

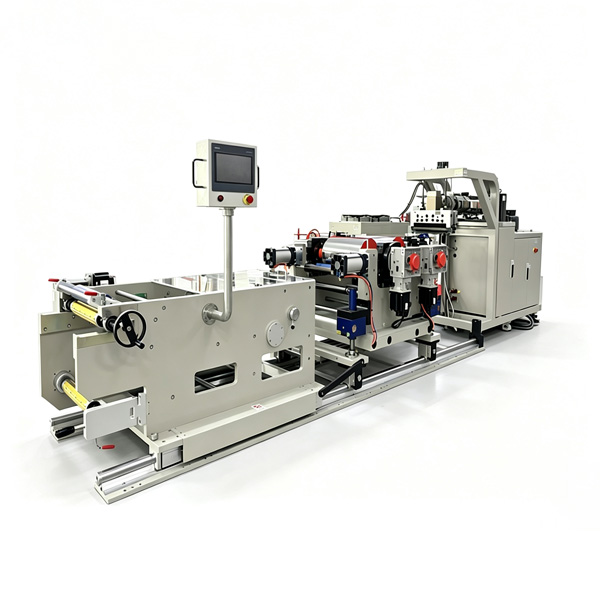

Main System Composition

●Small Precision Single Screw Extruder

The core plasticizing unit. Optimized screw design with proper L/D ratio and multi-zone independent temperature control. It realizes uniform plasticization and stable melt extrusion with steady flow and low pressure fluctuation. Compatible with polymers of different viscosity, avoids material degradation and poor plasticization. Servo motor for stepless speed adjustment to match different materials and target film thickness.

●Optional Melt Pump System

Melt metering pump can be selected for higher experimental precision. It stabilizes melt flow rate and extrusion pressure, improves film thickness uniformity and reduces process fluctuation. Suitable for high-precision functional films and ultra-thin film development.

●Manual Screen Changer

Easy and fast screen changing. It filters impurities, gel particles and unplasticized pellets from melt to improve film surface quality, reduce fish eyes and defects. Convenient for material switching and cleaning, ideal for multi-formula alternating tests.

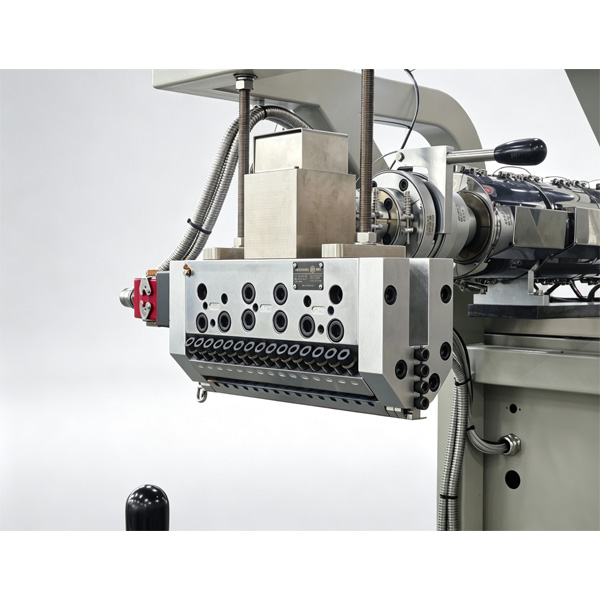

●Precision Casting Die with Hanger

Optimized internal flow channel without dead zone or material stagnation. Uniform melt distribution and consistent output. Adjustable die gap for different film thickness. Fixed with matched hanger for accurate positioning to guarantee flat and stable casting.

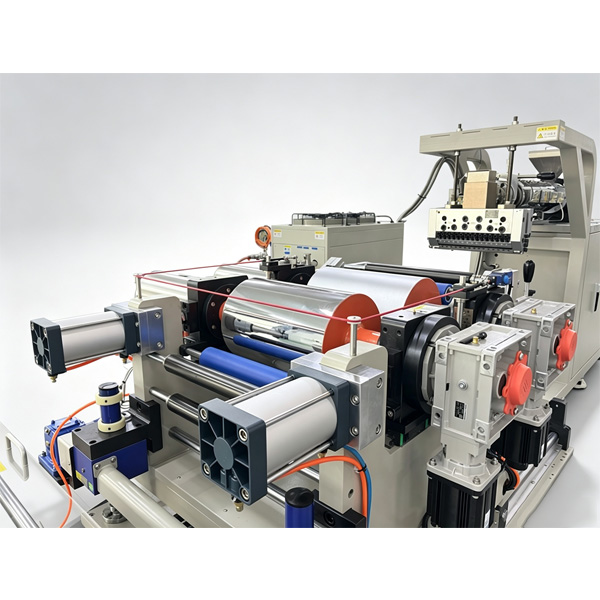

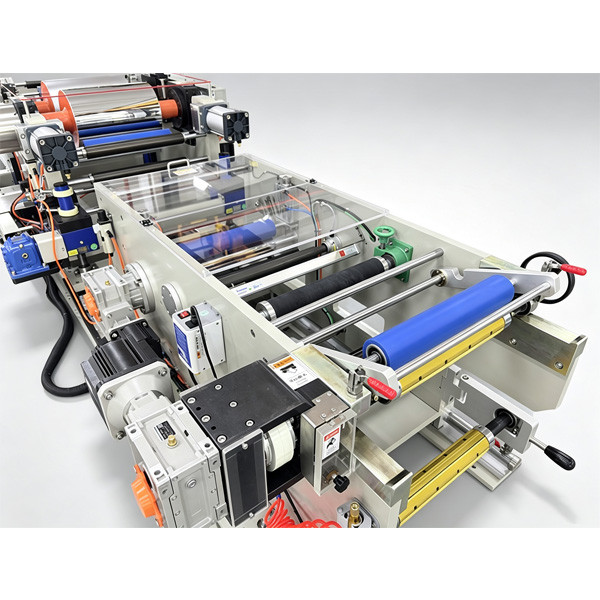

●Small Precision Casting Auxiliary Machine

Integrated cooling setting, edge trimming, haul-off and winding. Mirror finished cooling roll with high surface accuracy, wear and corrosion resistance. Forced air cooling for fast and uniform film cooling. Each roller group adopts independent servo drive for high synchronous precision. Constant tension winding produces wrinkle-free flat film with good sample consistency.

Application Range

✅Material Research

●Biodegradable films: Formulation development and blending modification of PCL, PLA, PBAT casting films; process exploration for degradable film forming.

●Polyolefin films: PE & PP casting films, modified polyolefin functional films, toughened films and filled film sample preparation.

●Modified polymer materials: Film forming performance evaluation of filled, toughened and blended polymer systems.

●Functional films: Research on hydrophilic films, barrier films and coating / laminating materials.

✅Industry Sectors

●Universities & Research Institutes: Teaching experiments, project research and sample preparation for polymer, material forming and packaging engineering majors.

●Biodegradable Material Manufacturers: Formula screening, lab test and sample production of degradable packaging films, agricultural mulch films and disposable films.

●Plastic Film & Packaging Enterprises: New casting film process development, raw material comparison, small batch sampling and pre-production verification.

●New Material R&D Institutions: Research on polymer composites and evaluation of additives’ influence on film performance.

●Coating & Lamination Companies: Lamination process test, substrate film preparation and coating thickness study.

✅Lab Purposes

●New material formulation screening and feasibility verification of film forming;

●Exploration of casting process parameters (temperature, screw speed, die gap, haul-off speed);

●Prepare specimens for film mechanical, barrier and microstructure property tests;

●Comparative experiments of different fillers and additives on film appearance and performance;

●Simulation of industrial casting line to obtain baseline process data for mass production.
