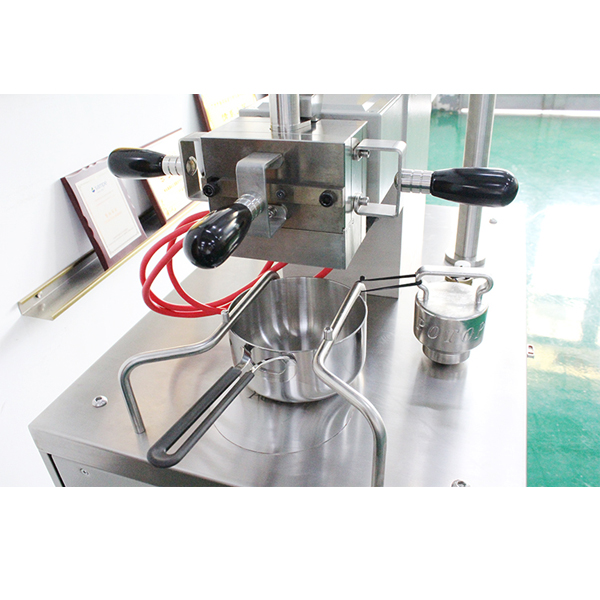

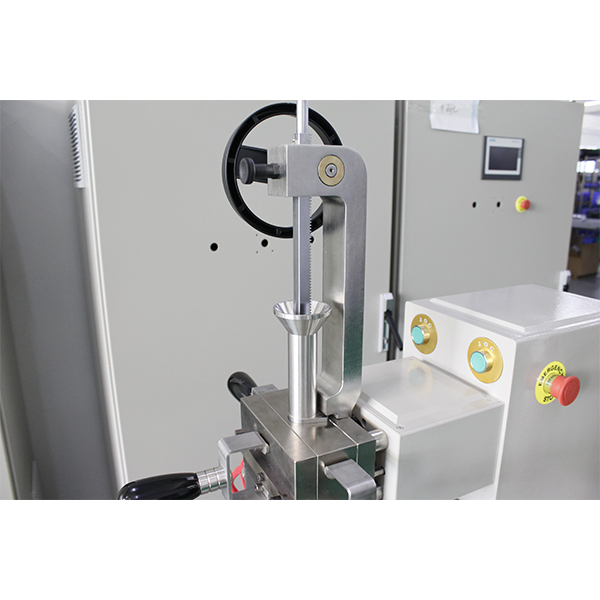

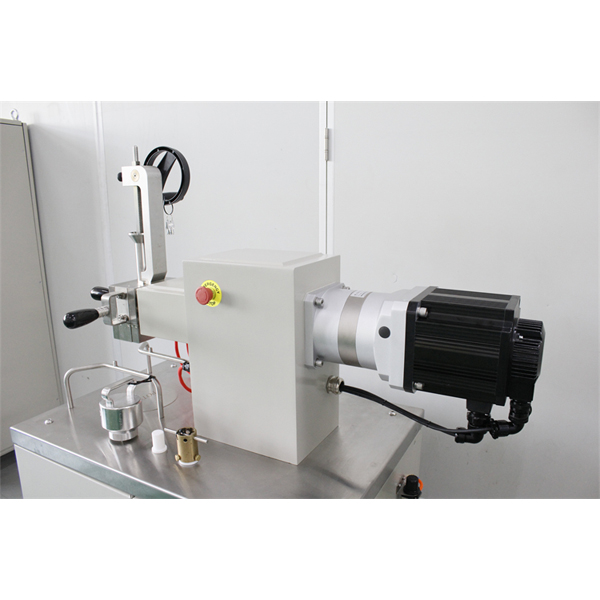

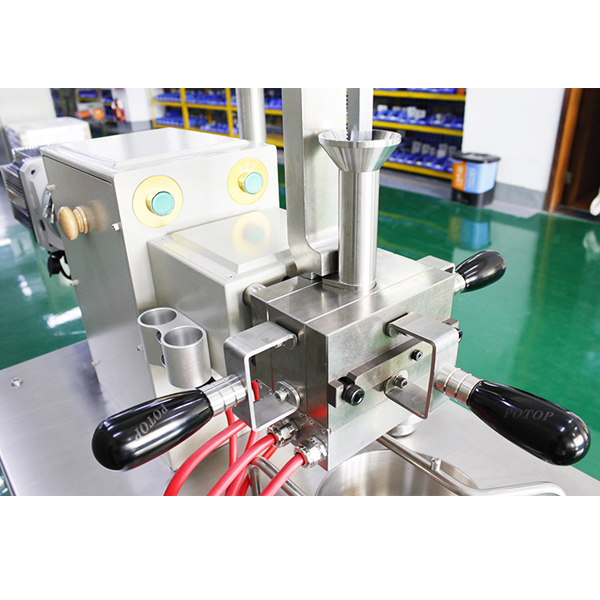

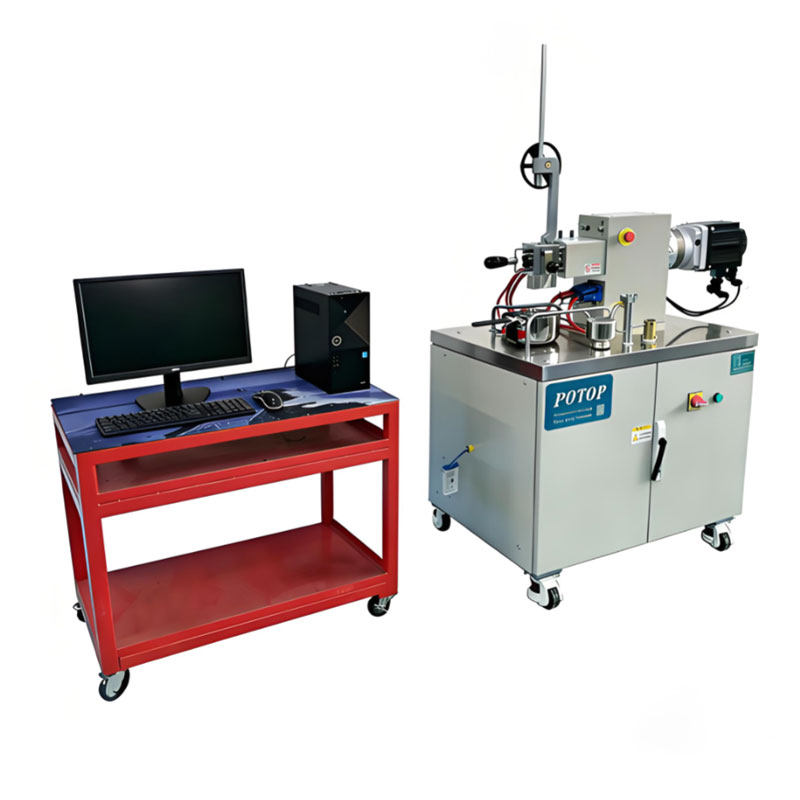

Small Precision Internal Mixer is mainly used for the plastication and mixing of rubber. It is a machine equipped with a pair of specially shaped rotors that rotate relative to each other, performing batch-wise plastication and mixing of polymer materials in a closed chamber under adjustable temperature and pressure. It mainly consists of components such as the mixing chamber, rotors, feeding and ram device, transmission device, and machine base
Product Introduction
Small precision internal mixer is mainly used for rubber plasticizing and mixing. It is a machine with a pair of relatively rotating rotors of specific shapes to plasticize and mix polymer materials intermittently under a closed state with adjustable temperature and pressure. It is mainly composed of a mixing chamber, rotors, feeding and pressing devices, transmission devices and machine base.
Product Features
●Building block structure design, dense refining cavity, rotor can be flexible disassembly, easy to clean up the material.
●The mixing chamber and rotor are made of high-performance corrosion-resistant and wear-resistant materials.
●High-performance servo motor, wide range of speed regulation, more stable speed.
●Humanized structure design, more convenient operation.
Application Range
●Polymer material formulation design.
●Raw material performance, quality inspection.
●PVC melting characteristics test.
●PVC dry blend plasticizer absorption performance test.
●Thermoplastic material thermal and shear stability test.
●Metal, ceramic and other inorganic powder sintering molding material formula design.
Main Technical Parameters
| Model | LKOI-06 | LKOI-20 | LKOI-30 | ||||
| Applicable material | General plastics and rubber, etc | ||||||
| Chamber volume | 55ml | 200ML | 300ML | ||||
| Speed | 0-187.5rpm | ||||||
| Rotor speed ratio | 3:2 | ||||||
| Operating temperature | Room temperature-350℃ | ||||||
| Temperature accuracy | ±1℃ | ||||||
| Working voltage | 3φ380VAC±10%，1φ220VAC±10%，50Hz | ||||||
| Rated power | About 4.5kW | About 13kW | |||||
| L×W×H | 1173mm×610mm×1578mm | 1400mm×610mm×1600mm | |||||
| Weight | About 250kg | About 520kg | |||||
