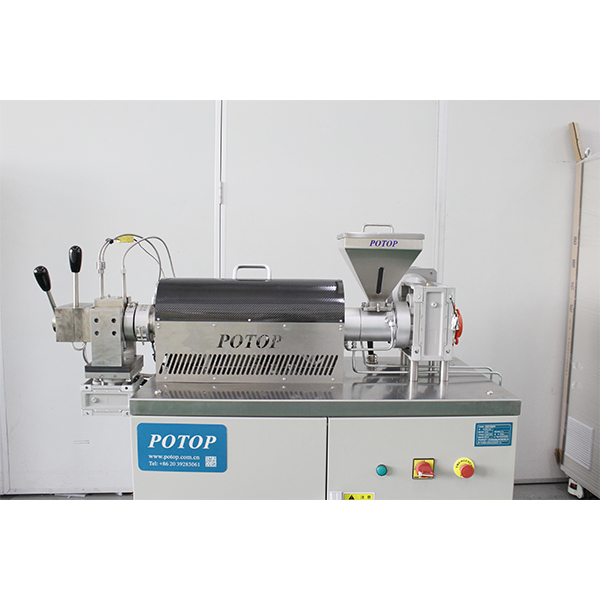

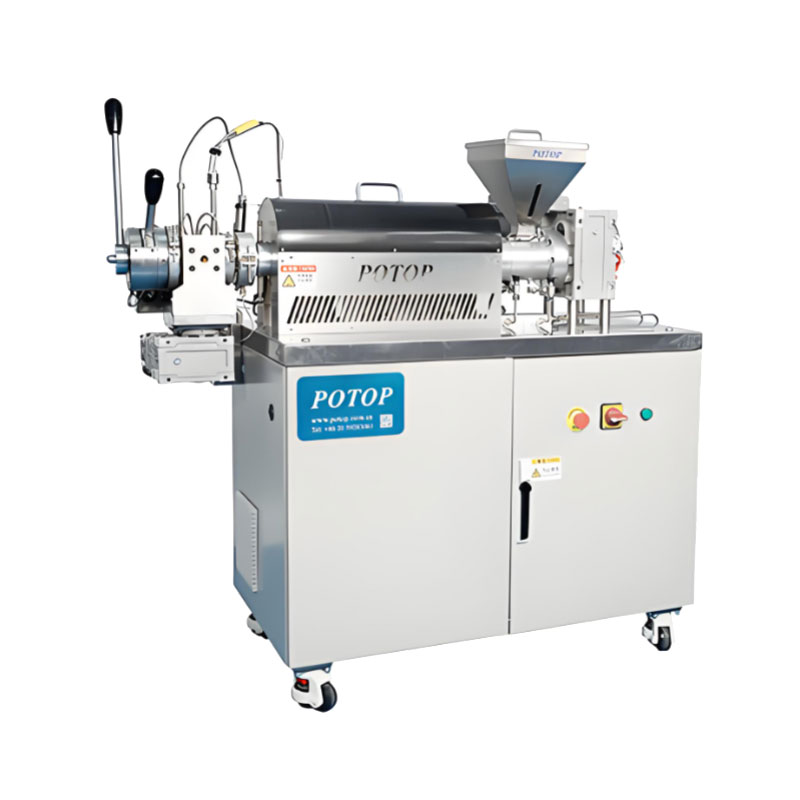

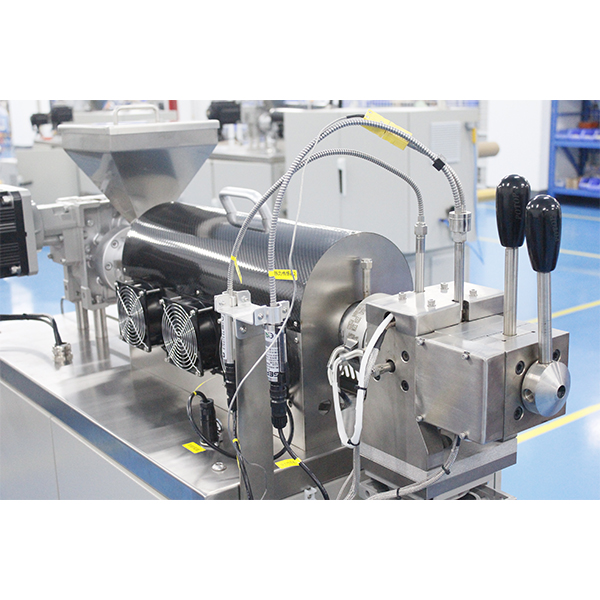

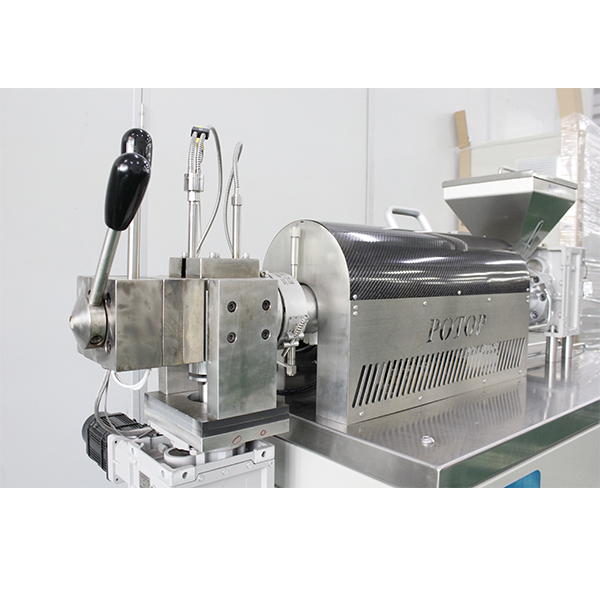

Filter Pressure Value Tester consists of a single-screw extrusion system, a melt pump, a screen changer, and a computer measurement and control system. By measuring the pressure difference (FPV value) of the melt before and after passing through the filter screen, it accurately quantifies the dispersion effect of colorants and fillers in color masterbatches and filled masterbatches — the smaller the FPV value, the better the dispersion.
Filtration pressure value tester is to flow the polymer base mixture containing a certain concentration of pigment through the extruder equipped with a melt pump and a filter screen assembly supported by a porous plate, there is a melt pressure transducer installed at the front end of the filter screen assembly.The maximum difference between the initial pressure (test base material) and the pressure measured by the sensor before the filter assembly after the melt pump is the filter pressure value (FPV). Using its size to characterize the dispersion effect of the masterbatch, the smaller the FPV value, the better the dispersion.

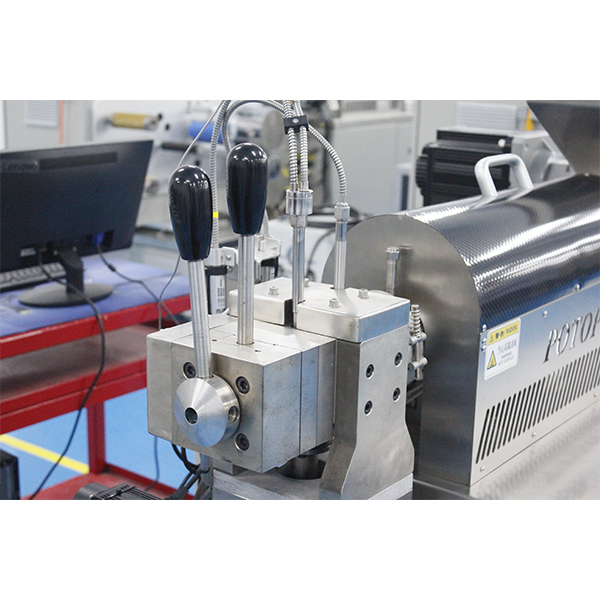

●Equipped with manual plate screen changer, the mesh is nitrided, high hardness and wear resistance.
●Selection of internationally recognized brand (GEFRAN) melt pressure transducer, high accuracy of test data.
●High-performance servo motor, wide speed range, more stable speed.
●Based on self-developed dedicated software with powerful functions and good human-computer interaction.
●Humanized structural design, more convenient operation.
●Filling material dispersion testing.
●Quality inspection and control of film preparation process.
●Color Masterbatch quality inspection and control.
|
Model |
CMSI-25/03 |
||
|
Applicable material |
PP、PA6、PA66、PET、PS、PE |
||
|
Screw diameter |
25mm |
||
|
L/D |
28 |
||
|
Screw speed |
0-120rpm |
||
|
Melt pump speed |
0-75rpm |
||
|
Rated flow of melt pump |
3cc |
||
|
Melt pump driving power |
0.75kW |
||
|
Melt pump pressure measurement range |
Before pump: 0-100bar; After pump: 0-300bar |
||
|
Weight |
About 360kg |
||
|
Pressure measurement accuracy |
0.5%FS |
||
|
Pressure measuring range |
0-50MPa |
||
|
Operating temperature |
Rt-350℃ |
||
|
Temperature accuracy |
±1℃ |
||
|
1#Strainer plate |
Double-layer mechanism, filter layer 615×108 mesh |
||
|
2#Strainer plate |
Double-layer mechanism, filter layer 615×132 mesh |
||
|
3#Strainer plate |
Three-layer structure, filter layer 165×1400 mesh |
||
|
Working voltage |
3φ380VAC±10%，1φ220VAC±10%，50Hz |
||
|
Rated power |
About14.5kW |
||
|
L×W×H |
1450mm×725mm×1300mm |
