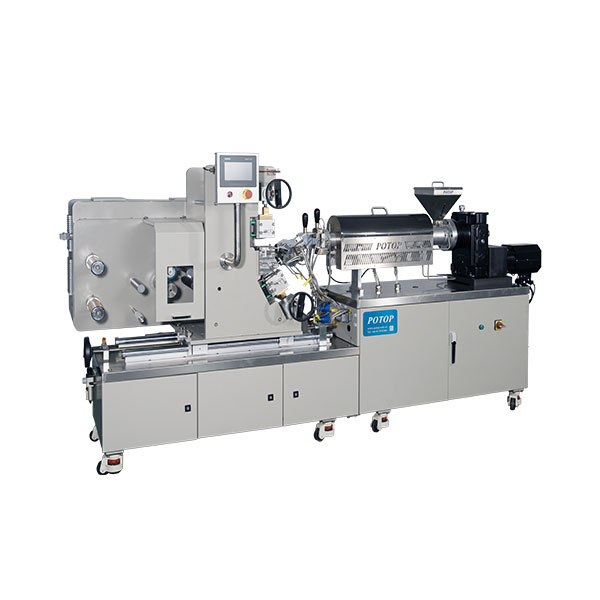

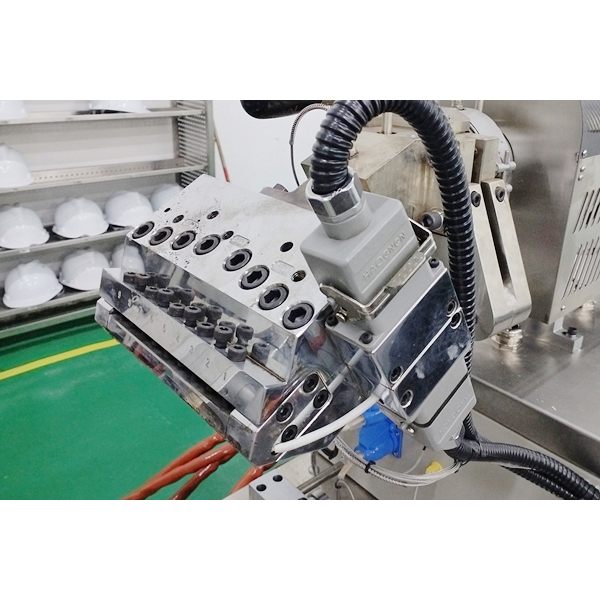

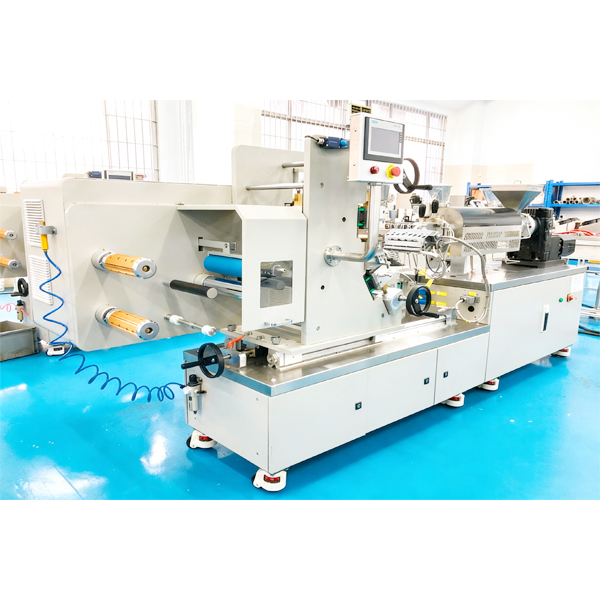

Small precision extrusion calender is composed of a small precision single screw extruder, a screen changer system, a calendering die, a calendering system, a traction system, a winding system, an edge trimming system and a measurement and control system, etc. It can realize functions such as polymer extrusion, calendering, traction, edge trimming and winding.
● Integrates the functions of extrusion,calender,,trimming, winding and edge finishing,etc.
● Each power roller is independently driven by a servo motor, with precise roller speed control and good synchronization performance.

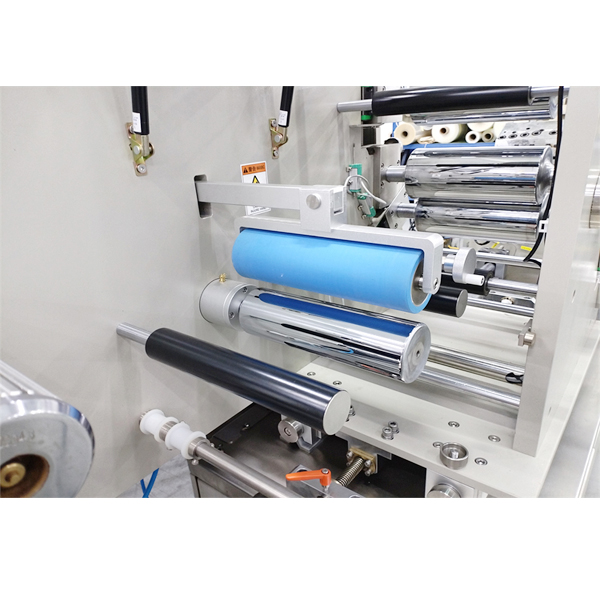

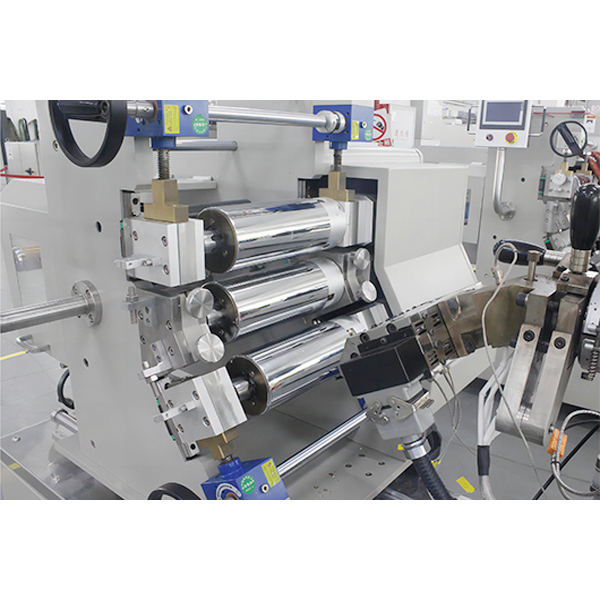

● Hard chrome-plated mirror roller, high surface finish, no rust.
● Computer-based measurement and control system and friendly operation interface, easy to operate and more powerful.
● Real-time measurement and graphic display of important data,convenient for observation.
● Optional online defect detection system.
Industries: Plastic modification, rubber processing, functional films, biodegradable materials, masterbatches
Application：
● Calendering molding experiment of polymer materials.
● Calendering production process research and parameter optimization.
● New material calendering performance test
● Color masterbatch dispersion performance test and evaluation
|
Model |
FPSI-30/26 |
||
|
Applicable materials |
PE,PP,PS,EVA,PC and composite material,etc. |
||
|
Screw diameter |
30mm |
||
|
L/D |
30 |
||
|
Screw speed |
0-120rpm |
||
|
Die head width |
200mm |
||
|
Product width |
0-150mm |
||
|
Product thickness |
0.1-0.6mm |
||
|
Roll width |
260mm |
||
|
Roller gap |
0-10mm |
||
|
Linear speed |
0-10m/min |
||
|
Pressure measuring rang |
0-50MPa |
||
|
Pressure measuring accuracy |
0.5%FS |
||
|
Operating temperature |
Room temperature-350℃ |
||
|
Temperature accuracy |
±1℃ |
||
|
Working voltage |
3φ380VAC±10%，1φ220VAC±10%，50Hz |
||
|
Rated power |
About 25kW(including temperature cycle controller) |
||
|
L×W×H |
3000mm×1030mm×1830mm |
||
|
Weight |
About 1600kg |
