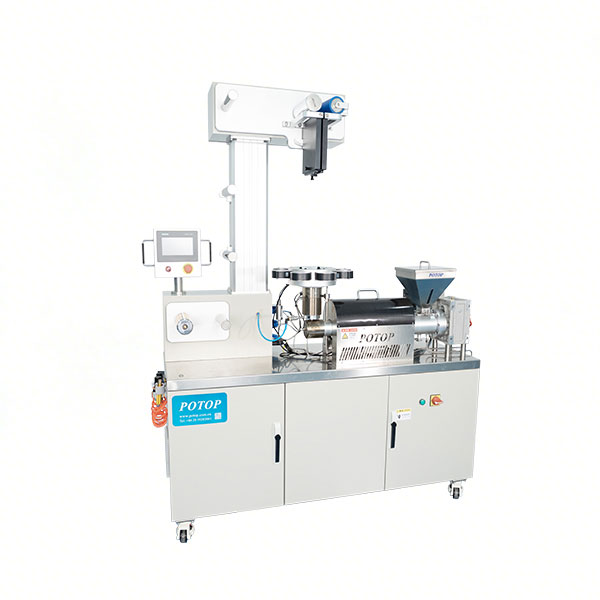

Small precision extrusion blown film machine adopts precision extrusion and high-performance film blowing molding technology. It is suitable for film blowing molding of common polymer materials such as PE. When used in conjunction with special accessories, it can also realize extended functions such as raw material dispersion detection and film quality detection such as gel point, fish eye, crystal point, black point, etc. It is an ideal experimental equipment for high-precision and high-performance film molding.
Small precision extrusion blown film machine is mainly used in the research and development of new material formulas, material film blowing performance testing, masterbatch dispersion performance testing, film blowing machine production process parameter optimization, pigment dispersion performance testing, etc.

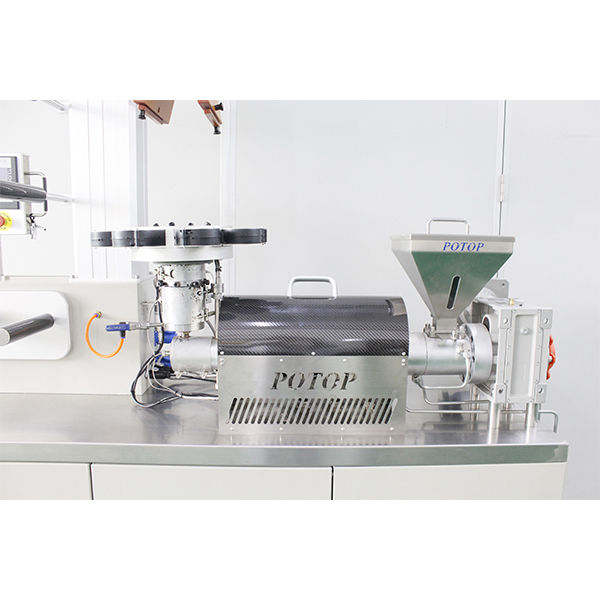

● Adopt servo motor drive, stepless accurate speed regulation, stable plasticizing, good consistency
● High-strength servo motor dedicated transmission box, exquisite appearance and good cooling effect.
● Electric lifting of the membrane frame,convenient for film guiding and process adjustment.
● Equipped with film blow frame telescopic device, convenient for transportation and movement.

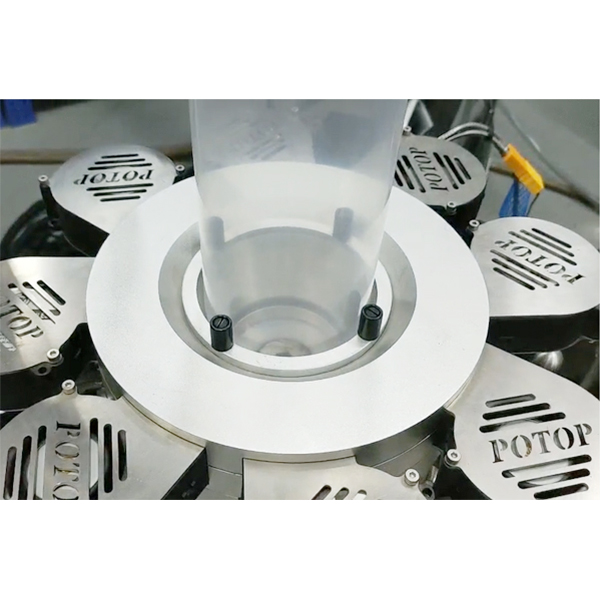

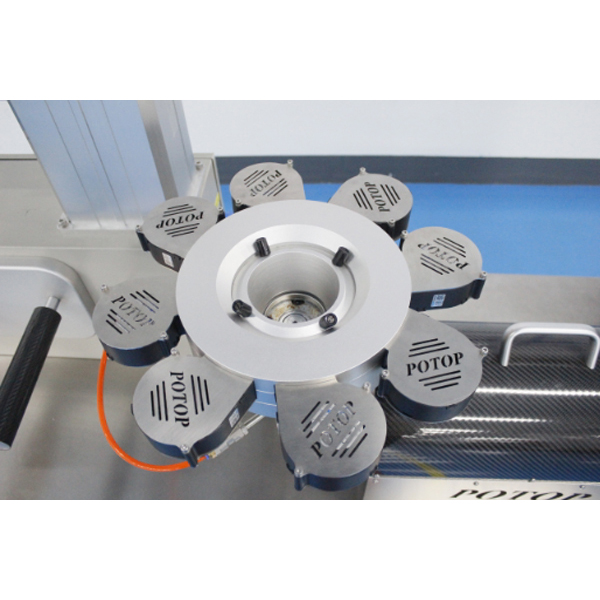

● Adopt vector wind ring, energy saving, low noise.

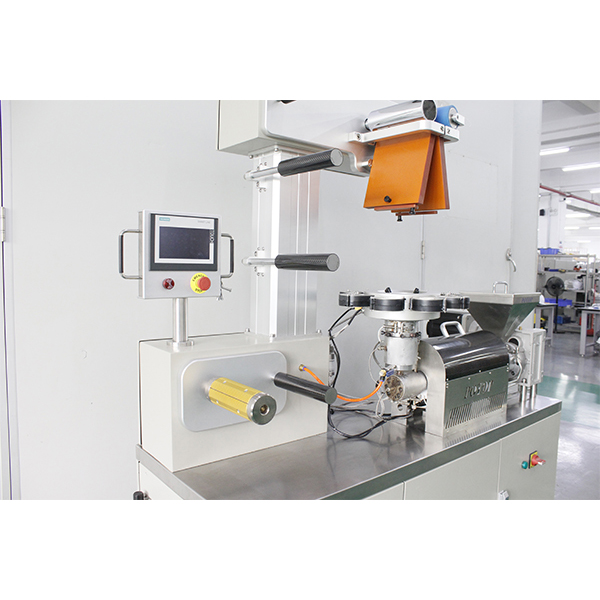

● Computer-based measurement and control system and friendly operation interface, easy to operate and more powerful functions.
● Real-time measurement and graphic display of important data such as extrusion system, convenient for observation
Industries: Plastic modification, biodegradable materials, masterbatches, functional films, new energy, medical/packaging
Application：
● New Material Formulation Development
● Material blown film performance testing
● Masterbatch dispersion performance testing
● Blown film production process parameter optimization
● Preparation of single-layer blown tubular films
● Study of blown film molding properties of materials
● Study of pigment dispersion properties
|
Model |
FBVI-20/22 |
||
|
Applicable material |
PE、POF、PVC |
||
|
Screw diameter |
20mm |
||
|
L/D |
28 |
||
|
Screw speed |
0-120rpm |
||
|
Max.lay flat width |
200mm |
||
|
Product specification |
0.02-0.15mm |
||
|
Roll width |
220mm |
||
|
Linear speed |
0-10m/min |
||
|
Pressure measuring range |
0-50MPa |
||
|
Pressure measuring accuracy |
0.5%FS |
||
|
Operating temperature |
Room temperature-350℃ |
||
|
Temperature accuracy |
±1℃ |
||
|
Working voltage |
3φ380VAC±10%，1φ220VAC±10%，50Hz |
||
|
Rated power |
About 9kW |
||
|
L×W×H |
1715mm×610mm×2000mm |
||
|
Weight |
About 550kg |
